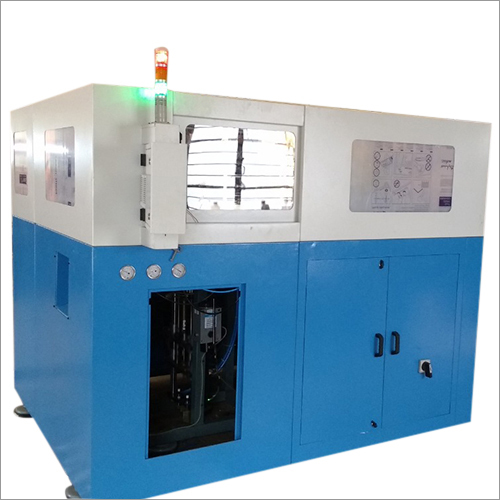

Pet Blow Moulding Machine is a highly innovative device used for the construction of a variegated range of bottles in versatile shapes and sizes. It is highly time and energy efficient. Its compact modular design allows easy installation and demands minimum maintenance. Offered Pet Blow Moulding Machine is adaptable to all atmospheric conditions and dedicated to serve a durable life span. It is advance and hundred percent reliable. Customers can avail this product from us in various specifications as per requirements at reasonable rates.
Specification :
Equipment Range | BT- 2/1 | BT- 1/2 | BT -2/2 | BT -5/2 | BT -1/4 | BT-2/4 | BT-0.3/4 | BT- 0.5/6 | BT -20/1 |
Streching Mechanisum | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
Mechanical Output (BPH) * | 1500 | 2400 | 2800 | 1600 | 4400 | 5600 | 4800 | 6400 | 240 |
Mechanical Output (BPM) | 25 | 40 | 47 | 27 | 73 | 93 | 80 | 107 | 4 |
Market Segments | Water | Water | Water | Water | Water | Water | Pharma | Pharma | Water |
| CSD | CSD | CSD | Edible Oil | CSD | CSD | Liquor | Liquor |
|
| Edible Oil | Edible Oil | Edible Oil |
| Edible Oil | Edible Oil | CSD | CSD |
|
| Liquor | Liquor | Liquor |
| Liquor | Liquor | Water | Water |
|
| Fruit Drinks | Fruit Drinks | Fruit Drinks |
| Fruit Drinks | Fruit Drinks | Juice | Juice |
|
| Pharma |
|
|
|
|
|
|
|
|
| Jar |
|
|
|
|
|
|
|
|
Machine Details | BT- 2/1 | BT- 1/2 | BT -2/2 | BT -5/2 | BT -1/4 | BT-2/4 | BT-0.3/4 | BT- 0.5/6 | BT -20/1 |
No. of cavities | 1 | 2 | 2 | 2 | 4 | 4 | 4 | 6 | 1 |
Max. volume of bottle | 2 Lit. | 1 Lit. | 2 Lit. | 5 Lit. | 1 Lit. | 2 Lit. | 330ml | 500ml | 20 lit |
Min. volume of bottle | 100ml | 30ml | 200ml | 500 ml | 30ml | 200ml | 30ml | 30ml | na |
Max. dia. of bottle (mm) | 120mm | 82 | 105 | 170 | 82 | 105 | 60 | 60 | 300 |
Max. height (mm) | 340 | 285 | 355 | 355 | 285 | 355 | 220 | 220 | 420 |
Neck ID Min - Max (mm) | 28 - 46and 80 | 16 - 46 | 16 - 38 | 28 - 63 | 16-30 | 25-30 | 16 - 30 | 16 - 30 | 80 |
Type of Stretching | Pneu | Pneu | Pneu | Pneu | Pneu | Pneu | Pneu | Pneu | Pneu |
Type of Locking | Pneu WL | Pneu WL | Pneu WL | Pneu WL | Pneu WL | Pneu WL | Pneu WL | Pneu WL | Pneu WL |
Mechanical Speed | 1400 | 2400 | 2400 | 1600 | 4400 | 5200 | 4400 | 4400 | 240 |
Max. Production Speed (bph) | 1400 | 2400 | 2200 | 1600 | 4000 | 5000 | 3600 | 3600 | 200 |
No. of Heater Banks | 3 | 3 | 3 | 4 | 4 | 5 | 3 | 6 | 5 |
No. of Heating Zones | 9 | 7 | 9 | 9 | 8 | 9 | 6 | 6 | 12 |
Connected Load KW (Heating) 1500 kw one IR lamp | 40.5 | 31.5 | 40.5 | 54 | 48 | 67.5 | 27 | 54 | 90 |
Total connected load(kw) | 26 | 38 | 61 | 82 | 103 | 114 | 30 | 64 | 96 |
chiller requirement LPM | 30 lpm | 30 lpm | 50 lpm | 50 lpm | 50 lpm | 80 lpm | 50 lpm | 50 lpm | 50 lpm |
Compressor requirement for high pressure is consider as per maximum pack size | 50 | 84 | 170 | 200 | 150 | 371 | 57 | 130 | 166 |
Compressor requirement for low pressure @8 bar for 1l water mold in cfm | 50 | 70 | 70 | 90 | 90 | 90 | 68 | 150 | 90 |
with air recovery system for 1l water mold in cfm | 30 | 38 | 38 | 35 | 30 | 30 | na | na | 30 |
![]() |
